ECUMaster MUX Switch Box

Name: ECUMaster MUX Switch Box
Brand: My Store
SKU: 10025
Price: 20.40 GBP
Availability: InStock

£20.40 GBP

~~£20.40 GBP~~ £20.40 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

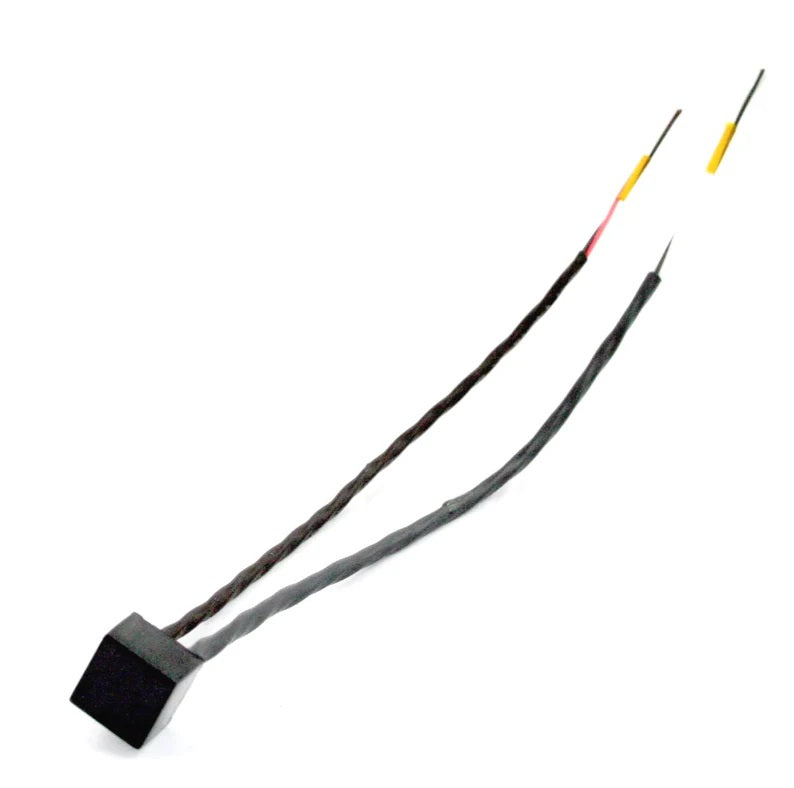

This small box will enable you to connect up to 3 switches to one analogue input at Ecumaster products.

Manufactured with very low tolerance resistors and all potted in 10mm x 10mm x 10mm cube.

Pinout

3 wires end

Pink- 5v sensor

White- Any free analogue input

Black - sensor ground

4 Wires end

White wires - switch 1, 2 ,3

Black - common for swithes
